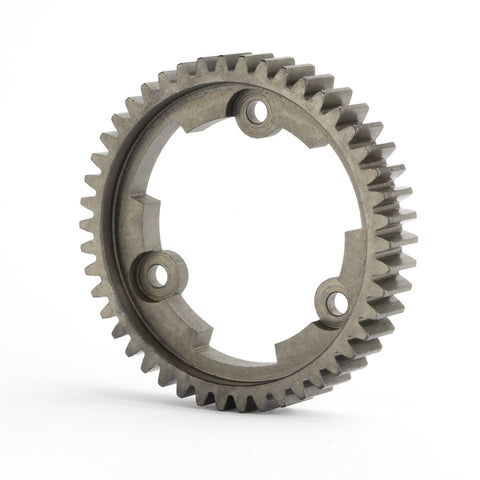

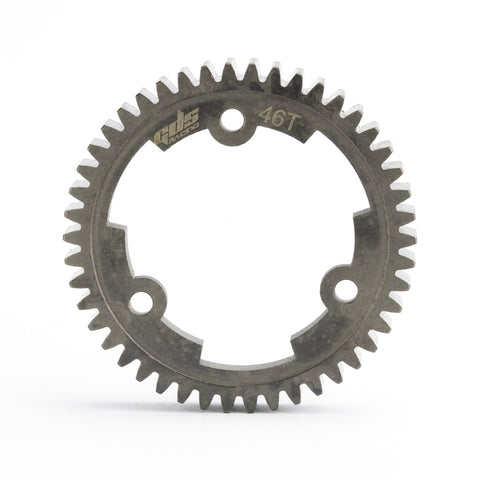

GDS Racing Pro Spur Gear 46 Tooth Mod1 Pitch for Traxxas X-MAXX 1/5 RC Monster Truck

  • $ 3200

This gear made of cased hardened Steel then nitriding the surface.

It's has very tough core inside and high hardness on the surface for wear proof.
Replacement spur gear for Traxxas E Revo2, X-Maxx 6S and 8S, and XO-1.

Tooth: 46T
Pitch: 1.0 metric pitch (M1, Mod1)
Outer diameter: 48mm
Thinkness: 8mm
Weight: 36g

  • Do NOT use the pin system for setting the X-Maxx gear mesh. Please manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 - Adjusting Gear Mesh)
  • With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
